GM 4L60E – 4L80E Transmission Connector with Pins

$29.00

-

Connector for GM 4L60E and 4L80E transmissions.

Out of stock

SKU: Conn-GMTrans-K Category: Brand:

Description

Use this transmission connector to wire up a 4L60E or 4L80E (1993 or later) transmission to a MicroSquirt, GPIO board, or other transmission control device. This connector includes most of the connections for the shift solenoids, pressure regulator, temperature sensor, and more. The transmissions use a separate connector for vehicle speed, and in the case of the 4L80E and later 4L60E variants, input shaft speed. Our IAT sensor connector will fit the speed sensor, and this takes care of the rest.

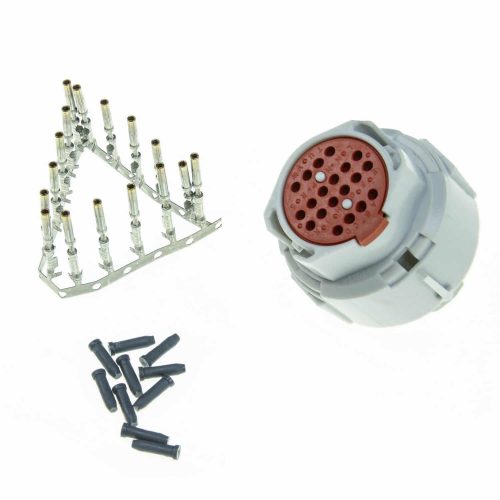

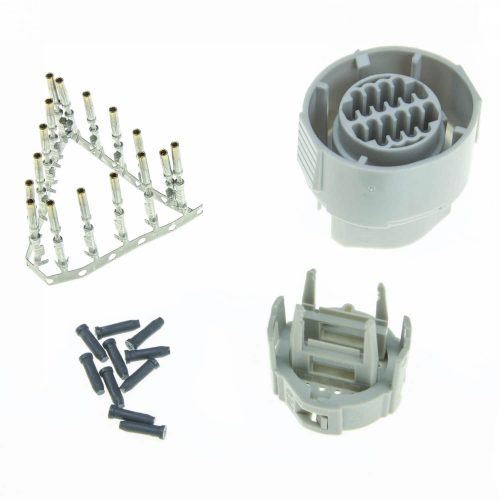

Includes 16 pins and 10 cavity plugs for unused connections. These are Delphi Micro-Pack terminals. Made by Delphi – these are the same connectors GM uses in their own wiring.

Customer reviews

Reviews

There are no reviews yet.

Be the first to review “GM 4L60E – 4L80E Transmission Connector with Pins”

GM lists different part numbers for the 4L60E and 4L80E. How does this fit both?

  • The difference between the two is the rubber seal. The one we use has all populations in the seal available; you plug the unused positions with cavity plugs.
